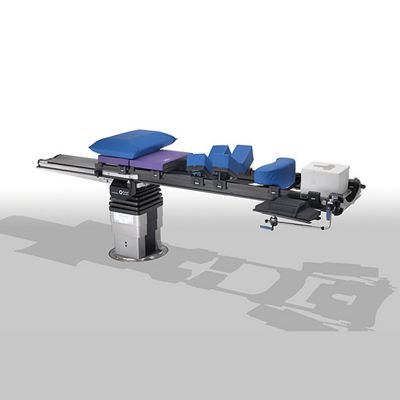

TS 7500 Carbon Spine Tabletop

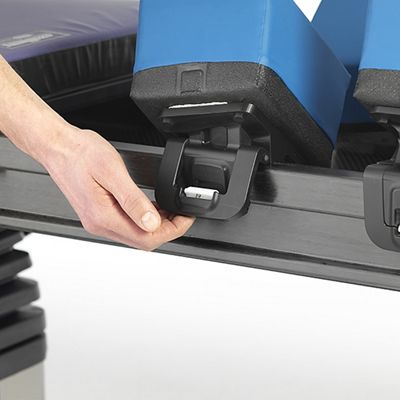

TS 7500 Carbon Spine Tabletop, Clip Close-up

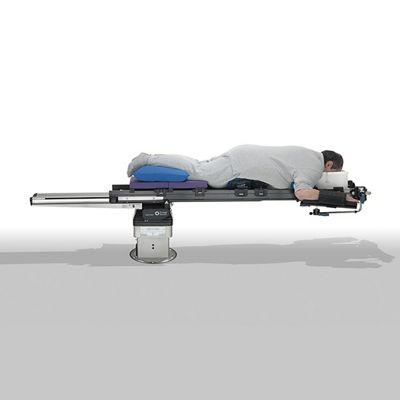

TS 7500 Carbon Spine Tabletop, patient in reverse orientation
TS 7500 Carbon Spine Tabletop, bariatric model

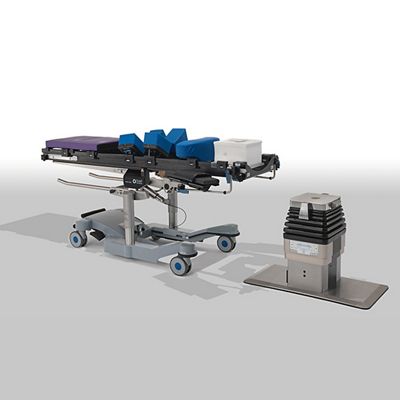

TS 7500, column, shuttle, Carbon Spine Tabletop
zoom_out_map
TS 7500 Carbon Spine Tabletop TS 7500 Carbon Spine Tabletop, Clip Close-up TS 7500 Carbon Spine Tabletop, patient in reverse orientation TS 7500 Carbon Spine Tabletop, bariatric model TS 7500, column, shuttle, Carbon Spine Tabletop
TS 7500 Carbon Spine Tabletop TS 7500 Carbon Spine Tabletop, Clip Close-up TS 7500 Carbon Spine Tabletop, patient in reverse orientation TS 7500 Carbon Spine Tabletop, bariatric model TS 7500, column, shuttle, Carbon Spine Tabletop

Carbon Spine OR Tabletop

A flexible specialty tabletop for spine surgery on the TS 7500 OR Table.



The Carbon Spine OR Tabletop is an ergonomic and flexible solution designed for complex spine surgery procedures. Its low tabletop height and open foot room give you ideal access to the patient. And a vast variety of special pads, components and accessories offer flexible positioning for various anatomies—enhancing ergonomics for both the patient and your clinical team.



From general to specialty, transform your OR to accommodate multiple functions with a single column—the TS 7500 OR Table—and a wide range of exchangeable tabletops.

Read full description

Find a Distributor

Please fill out the form below.

Success! Your email has been sent.

Thanks for your inquiry. A member of our Service team will be in touch.



Features

Optimal Surgical Site Access

Low tabletop height and open foot room offer ideal surgical access

360° Radiolucency

Enhanced imaging capabilities: up to 64.6" (1.642 mm) of X-ray area

Advanced Patient Positioning

Flexible positioning of special pads, components and accessories

Technical Specifications

Dig deeper into product attributes to see how we can fit your requirements.

Tabletop Dimensions 80.7" x 17" x 10.6" (2050 mm x 432 mm x 270 mm)
Patient Weight Capacity 496 lb (225 kg ) in zero position; 396 lb (180 kg) with longitudinal shift
Height Adjustment Mobile column: 20.1 in – 41.7 in (510 mm – 1,060 mm) / Stationary Column: 19.3 in - 40.9 in (490 mm - 1,040 mm) / Floor Mounted Column: 20.5 in – 42.1 in (520 mm – 1,070 mm)
Longitudinal Slide Mobile column: 23" (600 mm) Stationary Column / 31.5" (800 mm) Floor Mounted Column / 31.5" (800 mm)
Adjustment Speed of Longitudinal Slide Mobile Column: 3.1" in/s (80 mm/s) / Stationary Column: 3.1" in/s (80 mm/s) / Floor Mounted Column: 3.1" in/s (80 mm/s)
X-ray Area (Cranial) Mobile Column: 56.7" x 17" (1442 mm x 432 mm) / Stationary Column: 1642 mm x 432 mm | 64.6" x 17") / Floor Mounted Column: 1642 mm x 432 mm | 64.6" x 17")
Trendelenburg Mobile column: ± 20° / Stationary Column: ± 20° / Floor Mounted Column: ± 20°
Tilt Mobile column: ± 15° / Stationary Column: ± 15° / Floor Mounted Column: ± 15°
